Cabinet Carcass

Building a Kitchen, Wardrobe or any other storage requires a Carcass. It is foundation stone in constructing various types of furniture. Most design ideas require carcasses in order to build required shapes and designs. Carcass is not only concealed, but also exposed part of the furniture. Using various drilling patterns and internal configurations it can become a highly organised storage solution. We offer full design flexibility and huge choice of different materials to work with.
The only Limitation is your Imagination. Click here to get started.

What we do

Create Assembly is a New Feature on Board Cut To size page which has been launched in June 2017. We offer complete Online Service for custom cabinets with instant Quotation. Whether you are professional cabinet maker or beginner in this field, following step by step guide, wardrobes, kitchens and much more can be created to your specific dimensions and colour schemes. Our carcass full assembly templates are orientated to accommodate any furniture requirements weather it is wardrobe, study, kitchen, or any other type of storage. We at Chigwell Building & Joinery Ltd are working very hard building library of various units and complete assemblies. Our aim is to release new template every fortnight, many different variations are to be created to fulfil needs of most demanding and creative. If you can not find the right template for you, please Contact us or call on 0208 5007 044 to discuss your requirements.

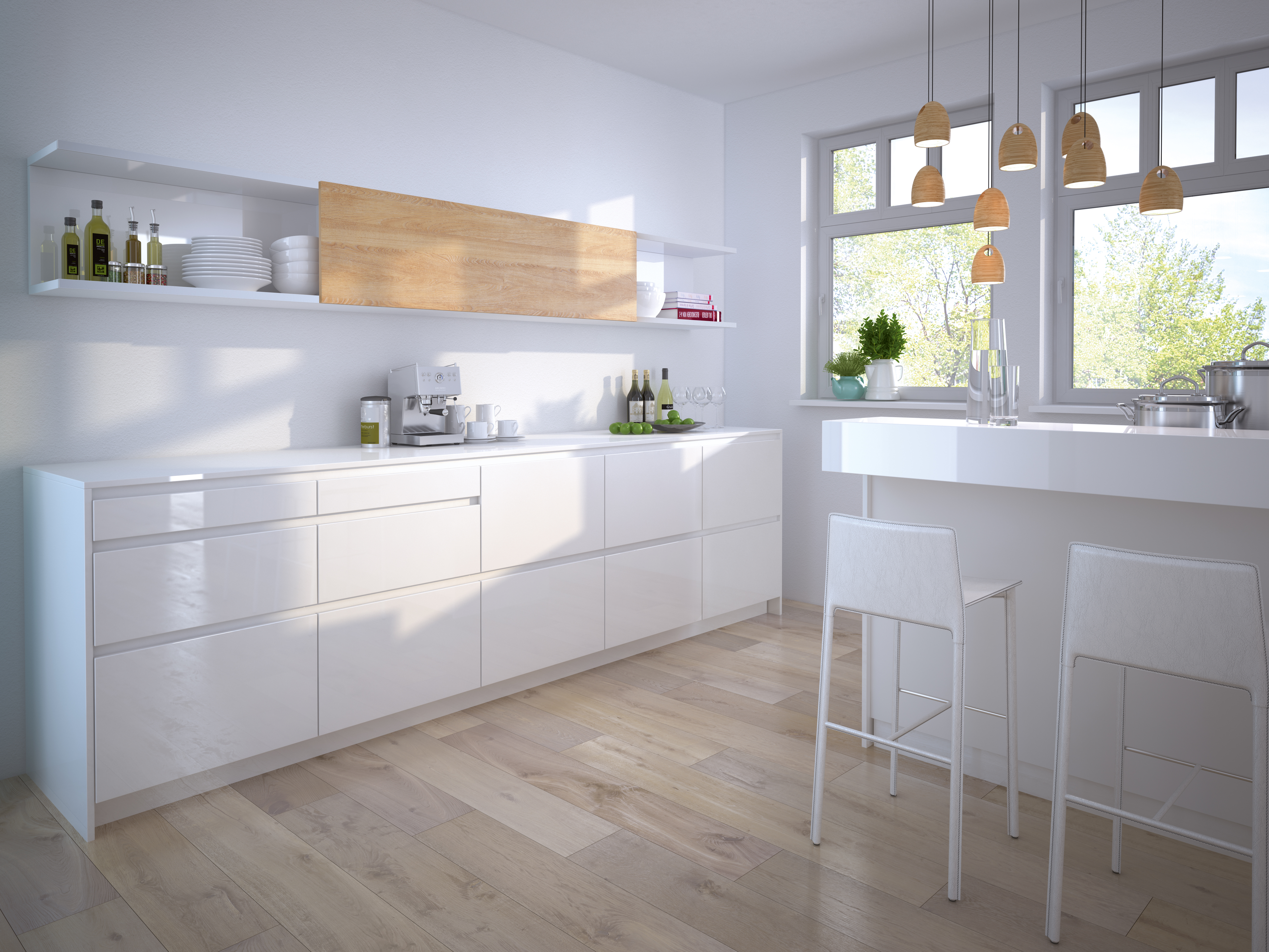

Kitchen Wall Unit

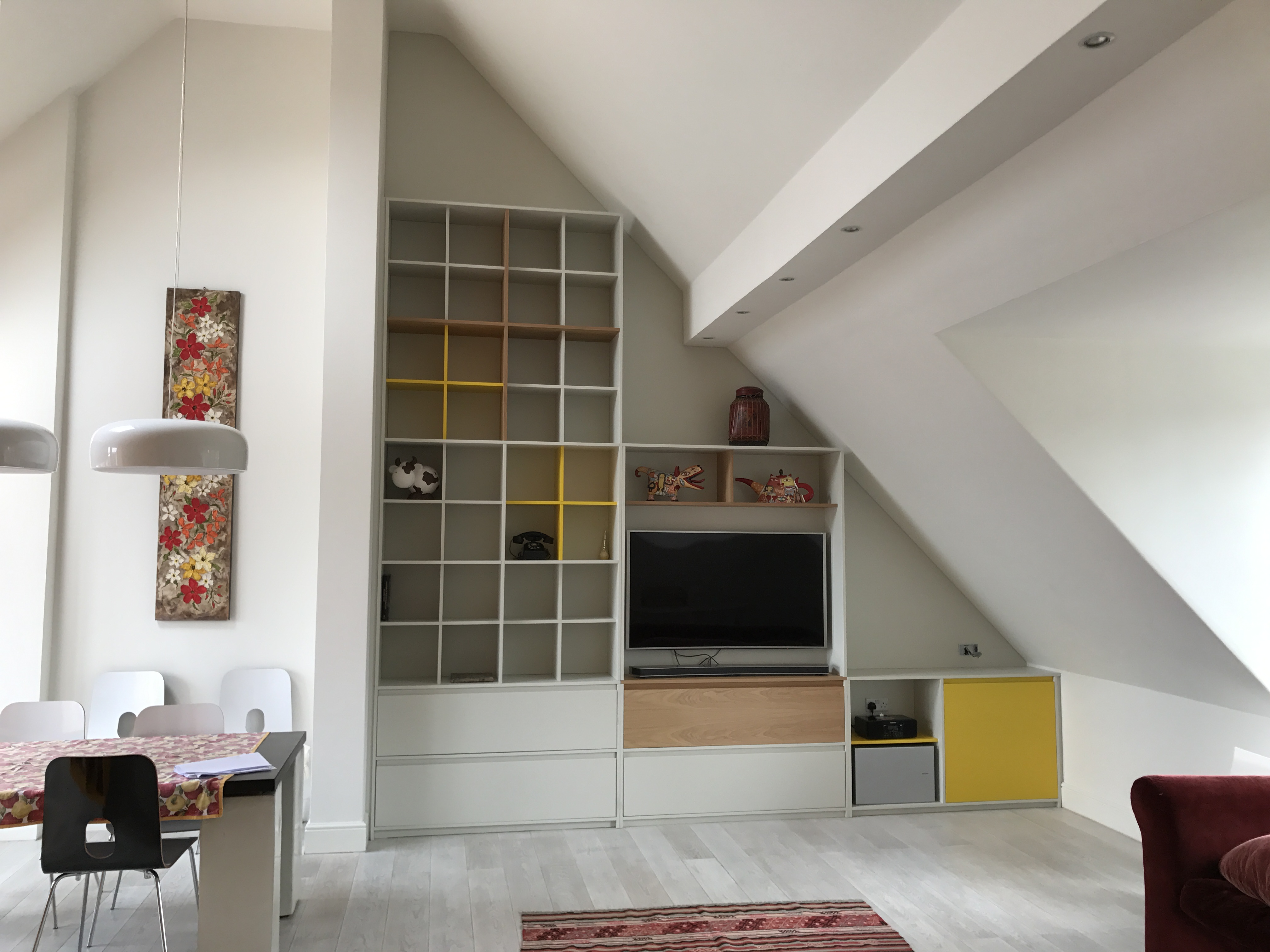

Tv Unit

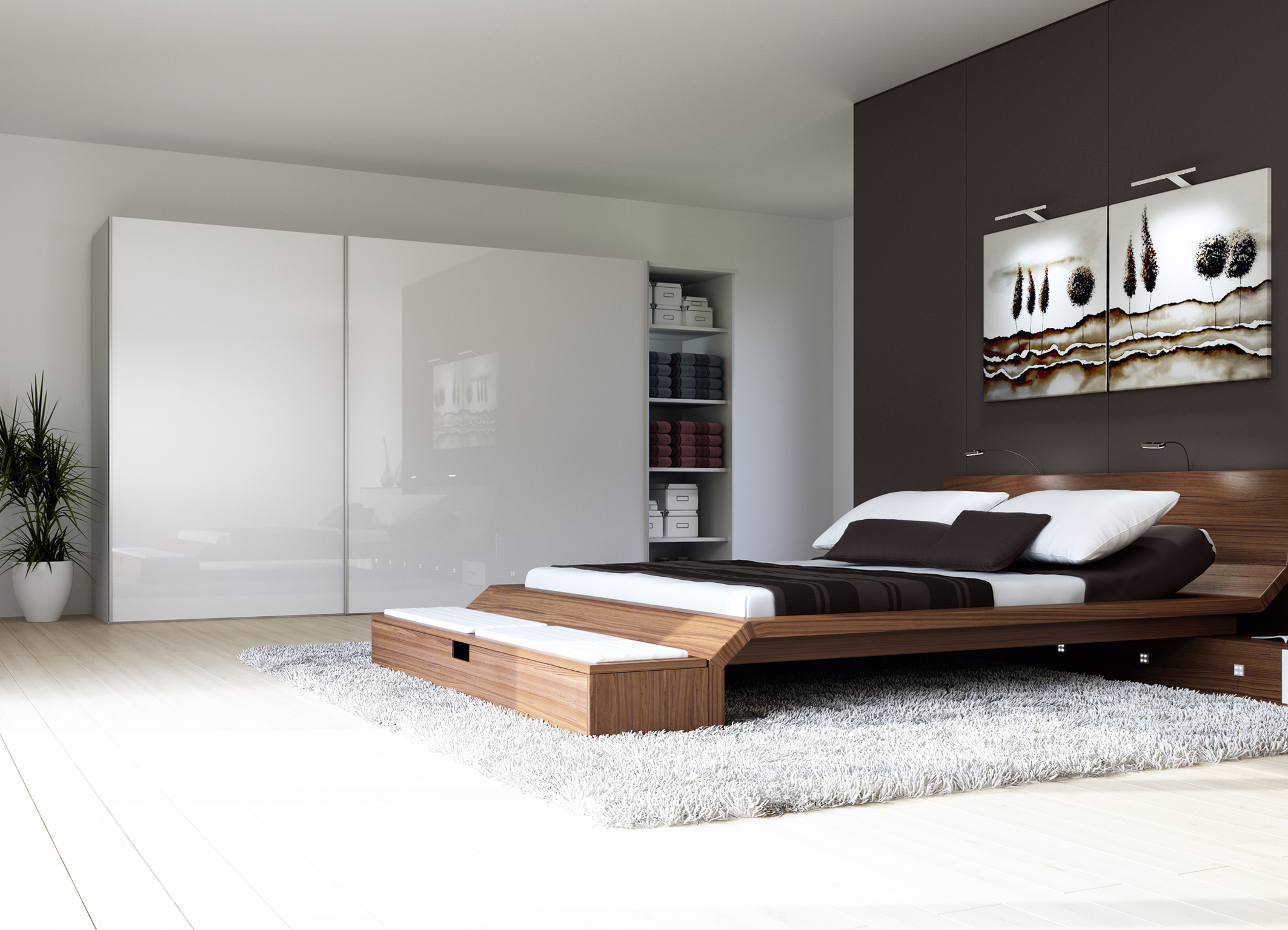

Sliding Door Wardrobe

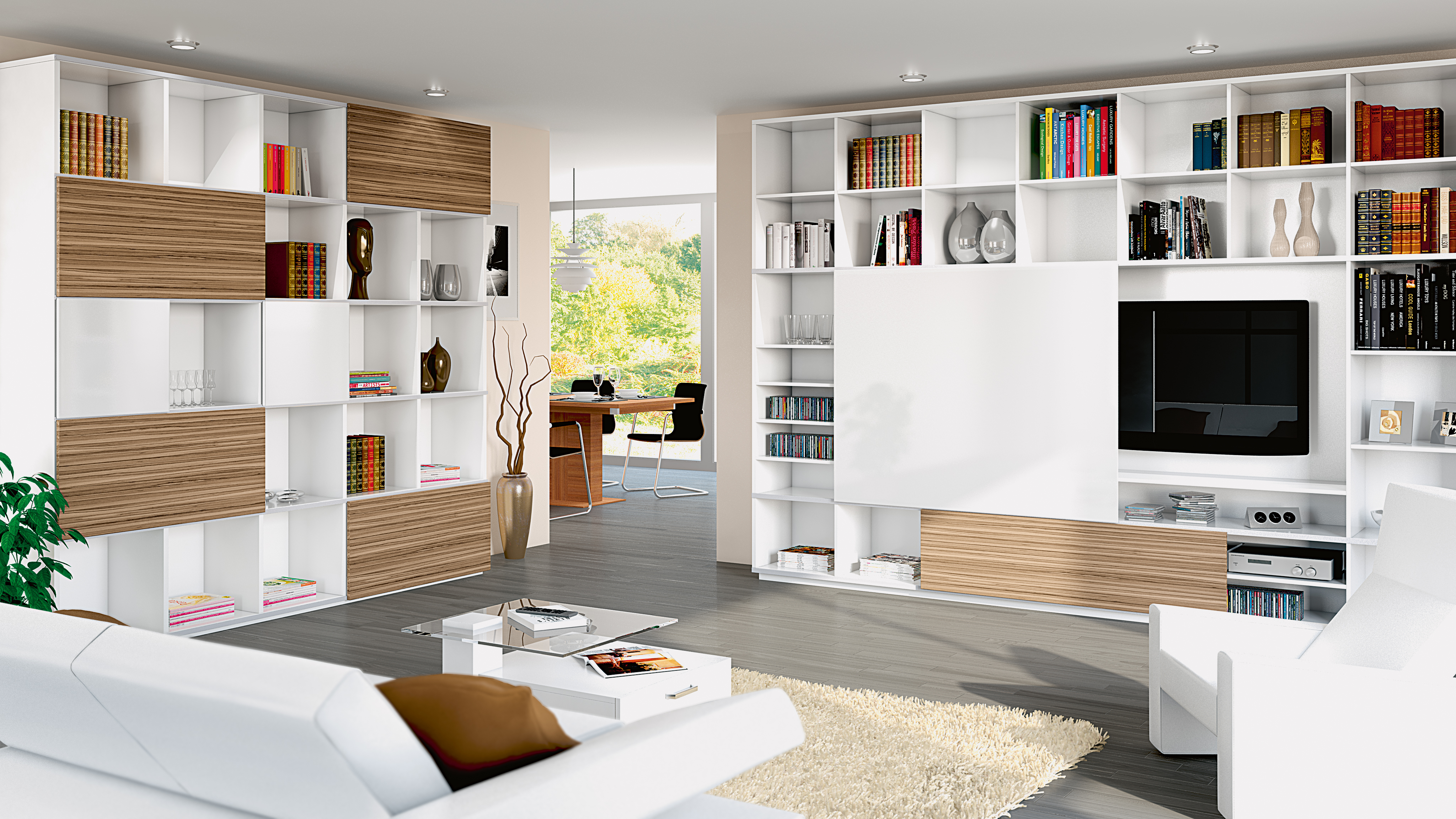

Living Room Entertainment

How We Do It

All templates under are flexible for altering internal arrangements as well as external dimensions to individual requirements. Every item is customisable and any material within allowed thickness range can be used. Based on you selections and inputs, we will generate cutting list, edge banging requirements, drilling programmes/ patterns. If a drawer box or standalone draw is selected we will supply drawer runners and fixings. When doors are selected drilling as well as hinges and fixings will be supplied. Selection of shelves will drill holes to carcass sides as well as adjustable shelf pegs will be supplied. So which ever option is selected we will supply ironmongery to go with it. Item drawings will be shown to scale.


As this is completely bespoke service with an option to use any material we can not fix price for Individual units. After generating cutting lists, based on chosen templates, various inputs and selected options all parts are being optimised for cutting. Best possible scenario of how many boards require to be cut will be selected making sure waste is minimum. This will include carcases as well as standalone cut to size parts where materials are same. One carcass will be more expensive as a lot of waste will be left from cutting particular materials, higher quantity of cabinets and standalone parts will have less wastage which means higher value for you money.After all above have been generated costs for each operation is shown in separate Tabs.

Boards - Number of boards required for the project as well as patterns including cutting time.

Edge Banding - will show how many meters of edge banding including costs for material

Machining - Machining will have all items broken down individually with costs next to it.

Ironmongery - Number and type of fixings required will be shown including costs.

Spray Finishing - will calculate areas and will show cost per meter with totals

We hope this will open endless possibilities to how Bespoke Cabinetry can be brought to next Century not just for the trade but for public as well. For More details on how to use this Feature please watch our Tutorial Video or contact us.

Step By Step Guide

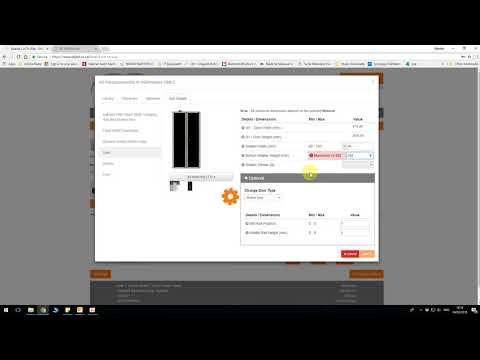

Tutorial - How to create Carcass


  • 1. Choose your material from available
  • 2. select category from available list. (e.g. Kitchen, Wardrobes, Living Rooms).
  • 3. Select Carcass type you wish to work with.
  • 4. Enter all dimensions and go through available options.
  • 5. Confirm material selection, edging colours and finishing options.
  • 6. Enter quantity of units and press
